SonoStar CP-7CPLT · Multi-Transducer System
A single wireless probe body accepts seven interchangeable transducer heads — from deep abdominal to fine vascular. Sonographers stop carrying a cart of single-frequency probes and start carrying one case.
- About CP-7CPLT
CP-7CPLT — one handle, seven transducers, every clinical view.
A pocket‑sized WiFi ultrasound probe with a replaceable battery and interchangeable, hot‑swappable transducer heads — from deep abdominal convex to 20 MHz high‑resolution linear and phased‑array cardiac. Streams live B/M/Color/PDI/PW imaging straight to your phone, tablet or Windows PC.

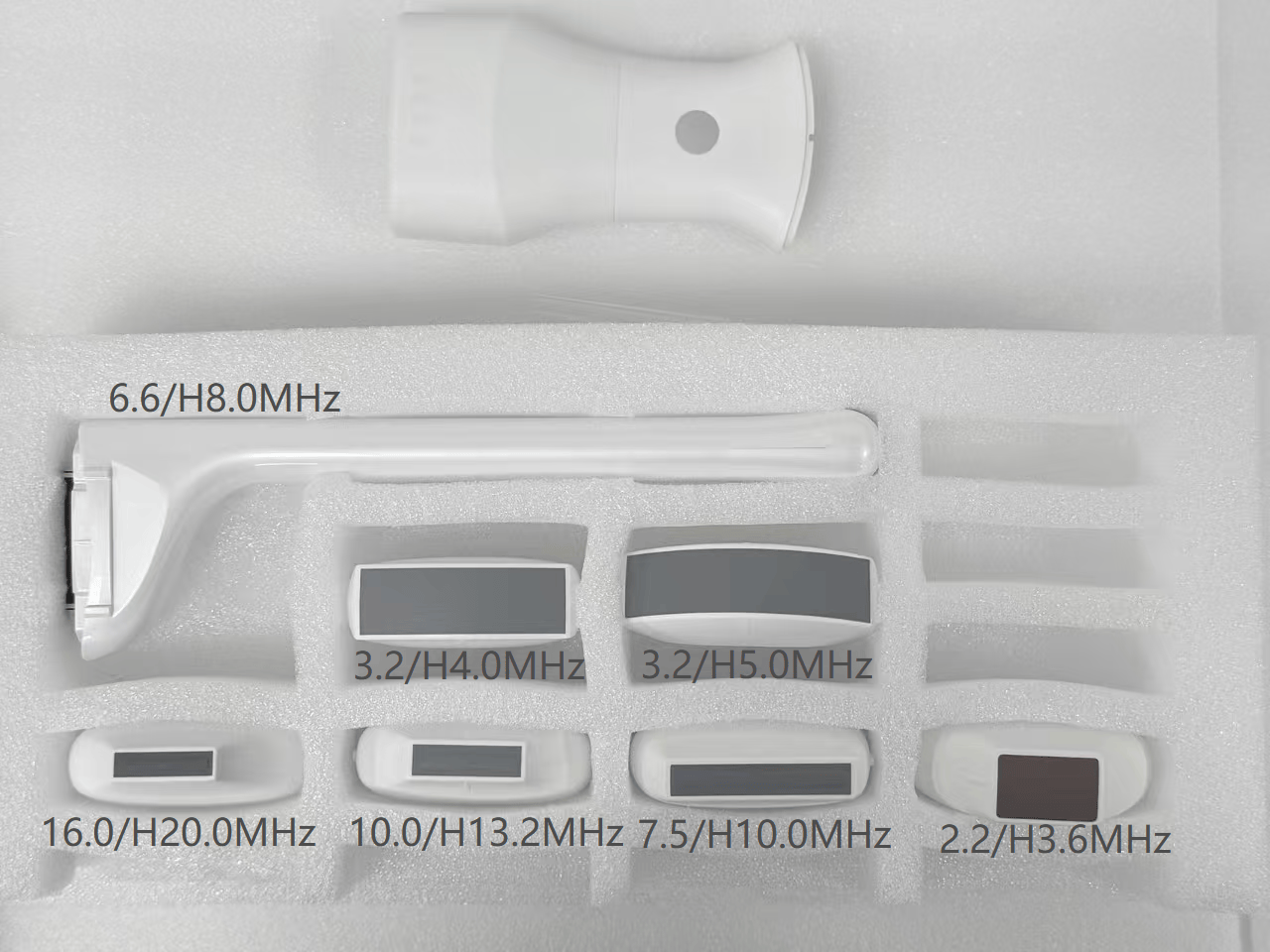

Transducer line‑up
Seven heads, one connector.
2.2 / H3.6 MHz
Phased array
Cardiac sector scanning through narrow intercostal windows — echocardiography and adult/paediatric cardiac views.
3.2 / H4.0 MHz
Convex
Deep abdominal and obstetric imaging with a wide 45° field of view.
3.2 / H5.0 MHz
Convex, curved array
General abdomen, kidney, obstetric and gynaecology scanning at extended depth.
6.6 / H8.0 MHz
Convex
Mid‑range abdominal detail — organ borders and vasculature at 60–90 mm depth.
7.5 / H10.0 MHz
Micro‑convex
Thyroid, small parts and pediatric scanning where a compact footprint is needed.
10.0 / H13.2 MHz
Micro‑convex
Higher‑resolution thyroid and superficial vascular imaging with Color Doppler flow.
16.0 / H20.0 MHz
Linear array
High‑frequency superficial, nerve, MSK and vascular imaging up to 40 mm depth.
Live scans, straight off the probe
Captured on‑device across the transducer range, streamed to a tablet over WiFi.

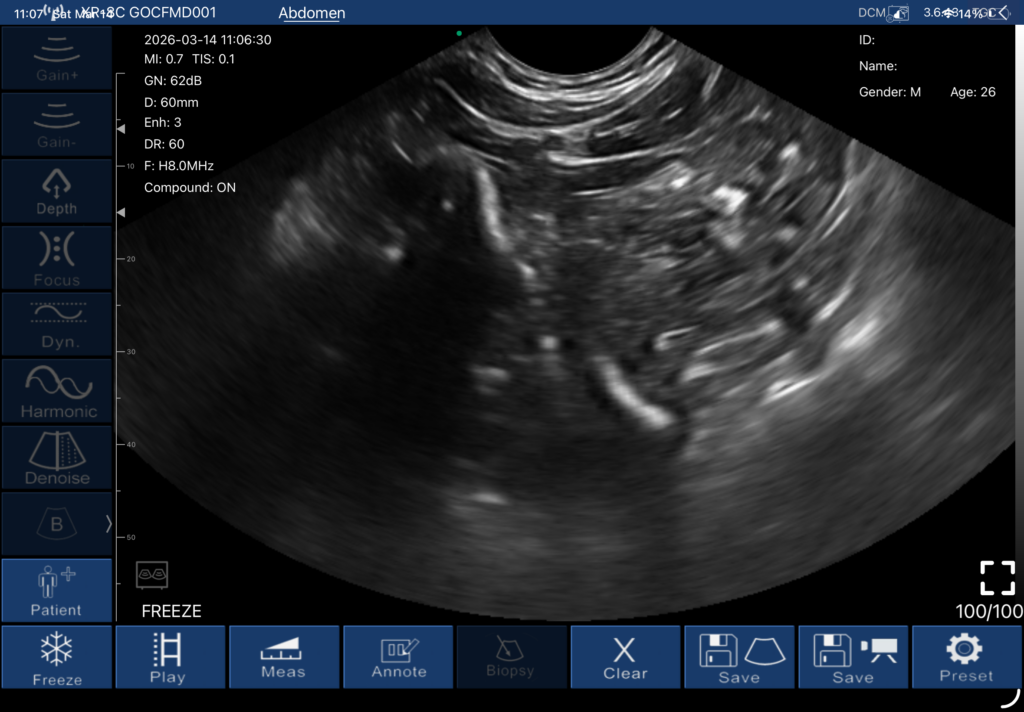

Abdomen · Convex 6.6/H8.0 MHz

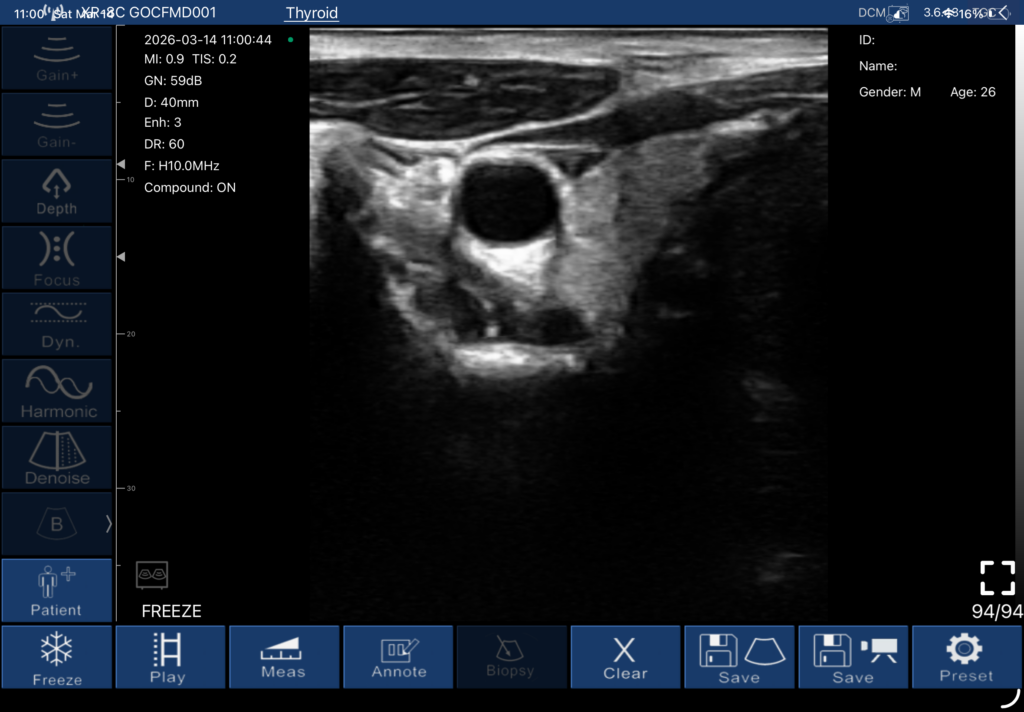

Thyroid cyst · Micro‑convex 7.5/H10.0 MHz

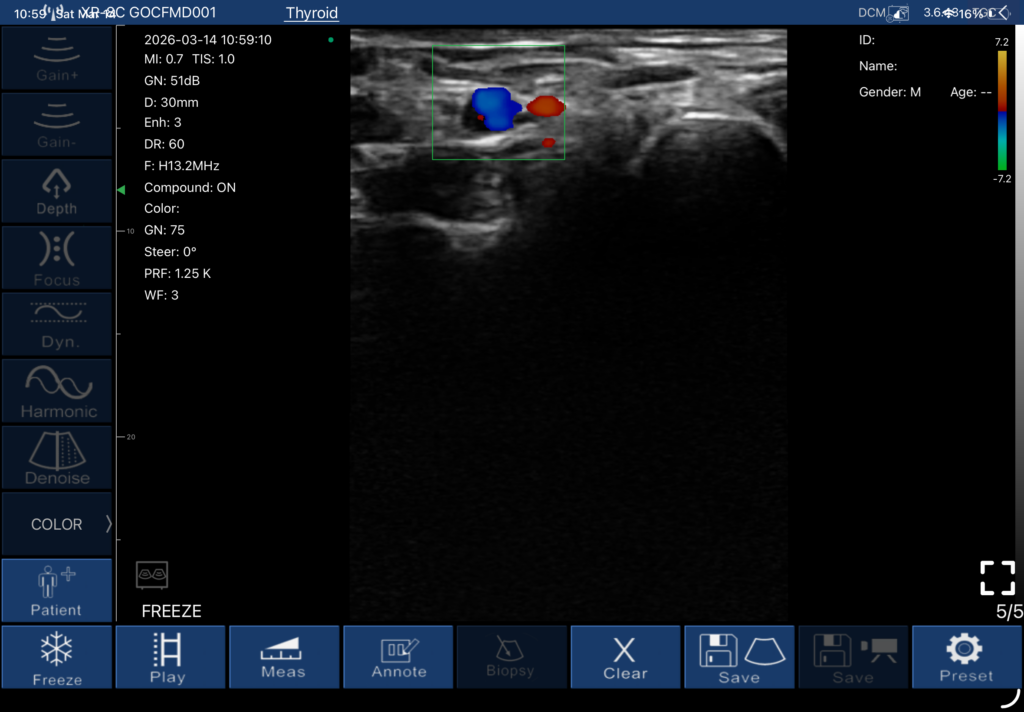

Thyroid nodule · Color Doppler 10.0/H13.2 MHz

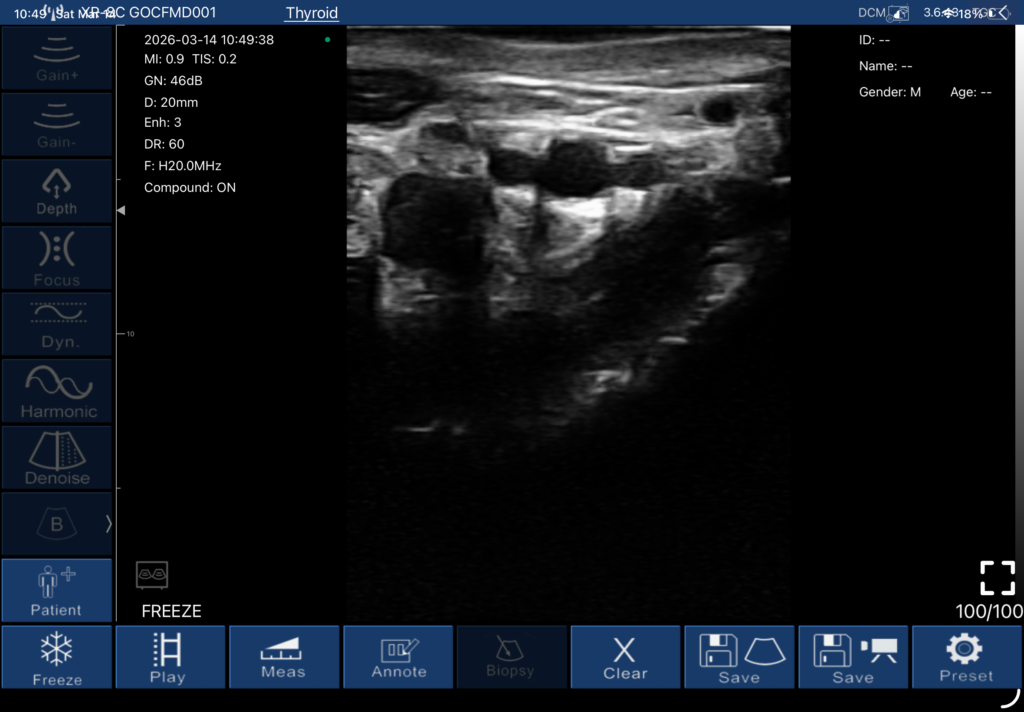

Superficial vessel · Linear 16.0/H20.0 MHz
See it scanning
Real capture footage from the probe — a high‑frequency linear head resolving a wrist artery, and the phased‑array head sweeping a cardiac view.
Hand / wrist artery imaging
Cardiac scan
Spec sheet
Engineering
Built to be opened, not thrown away.
The handle splits around a swap‑out battery pack, and every transducer head lands on the same contact array — a dead cell or a worn head is a spare part, not a new probe.
2200mAh
Replaceable battery
USB charging · ≈1.5 hours of continuous scanning per charge.
192/32
Element arrays
Electronic array scan mode across the full transducer line‑up.
450Mbps
802.11g WiFi
Direct wireless streaming to phone, tablet or PC — no cables.
230g
156 × 55 × 20 mm
Light enough for single‑hand scanning through a full exam.
