Red Light Knee Wrap
Home >Red Light Knee Wrap
Dual-Wavelength Photobiomodulation with Heat and Vibration Therapy for Joint Support

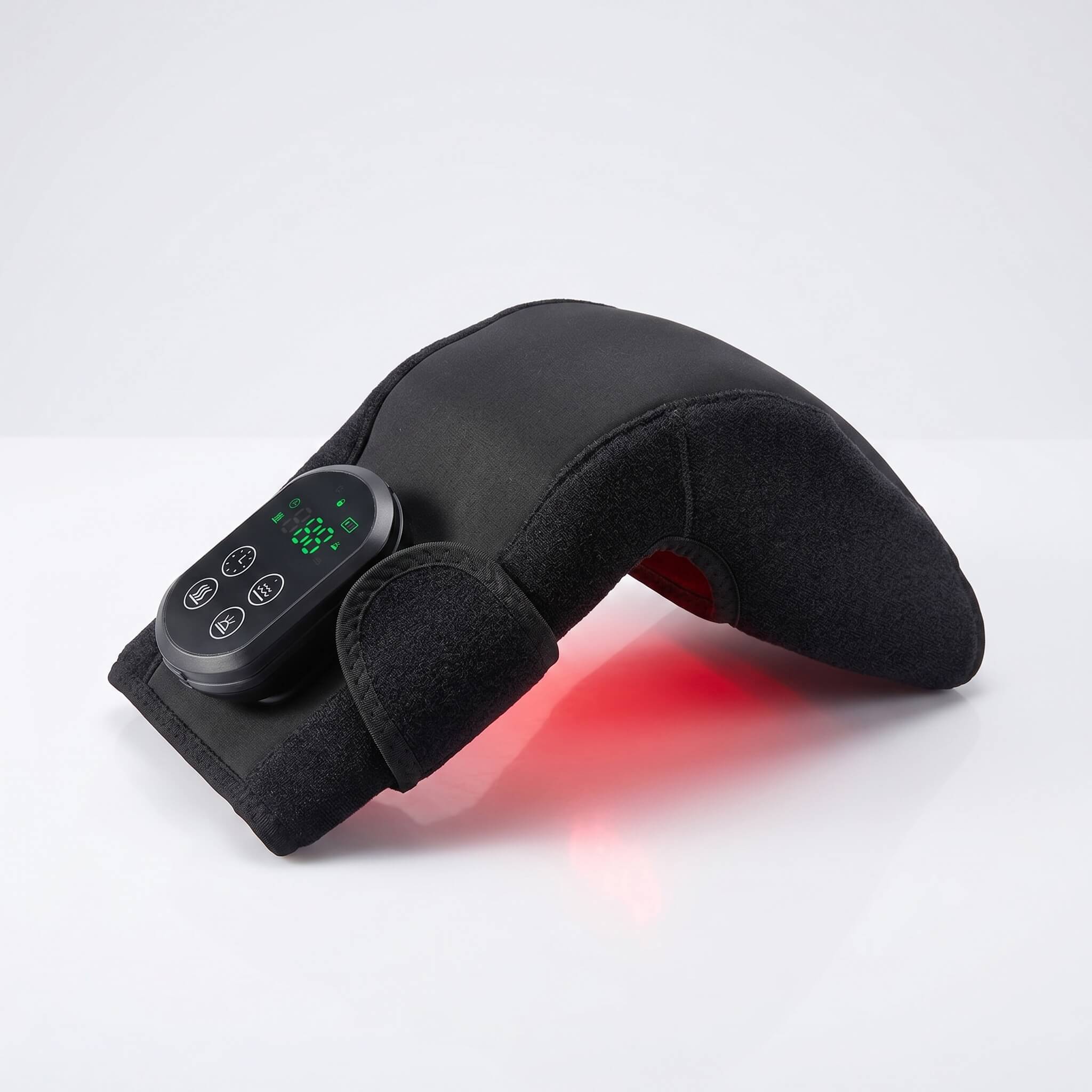

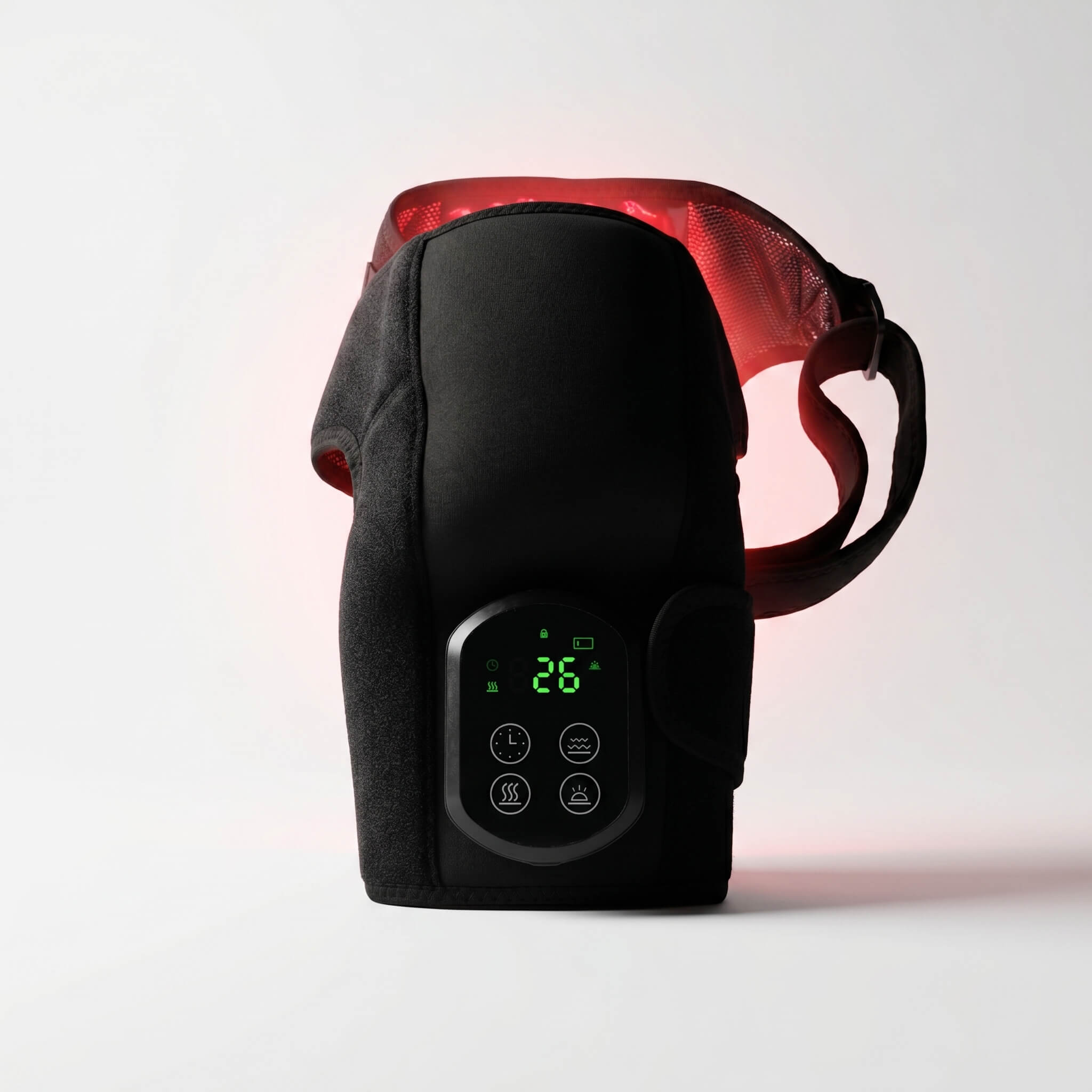

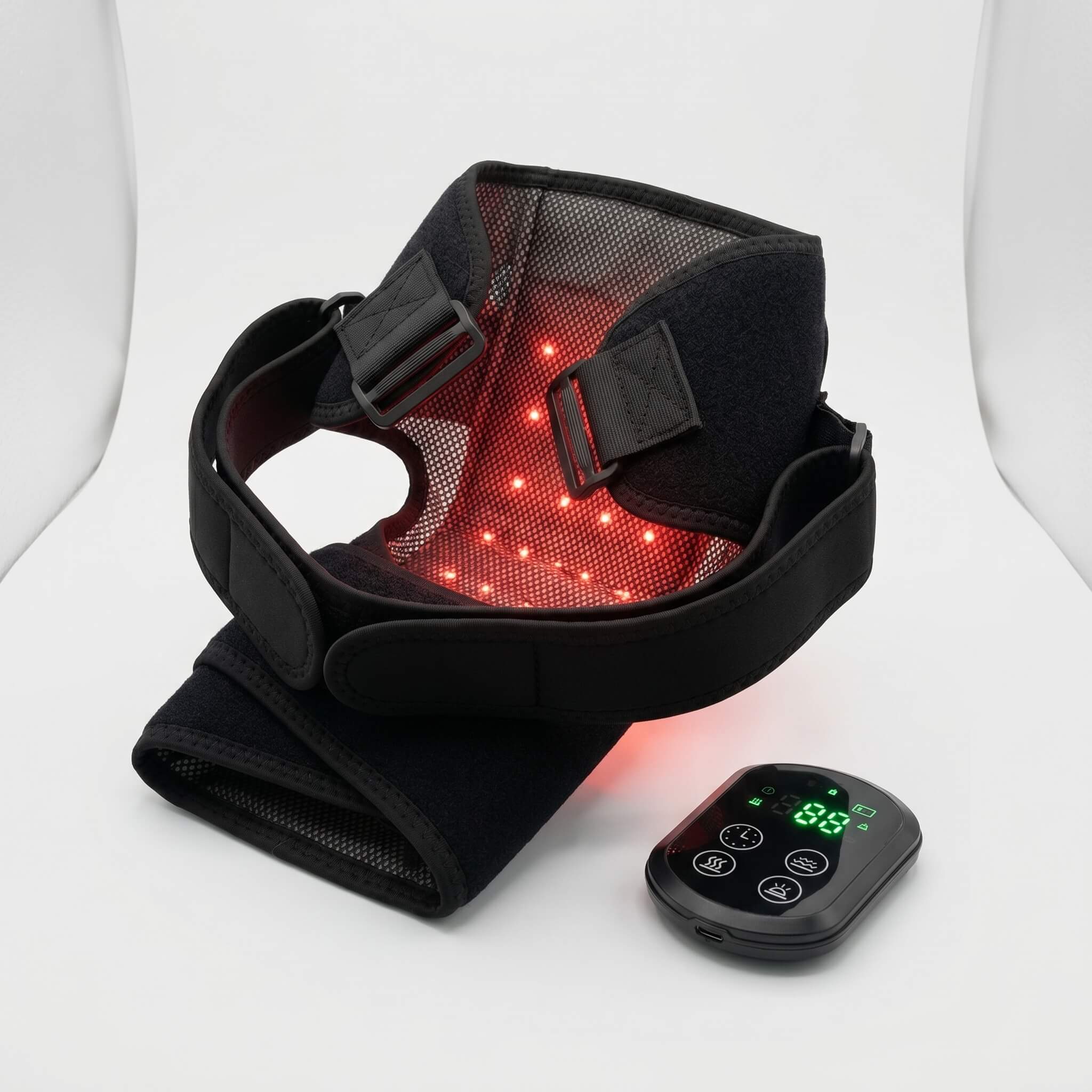

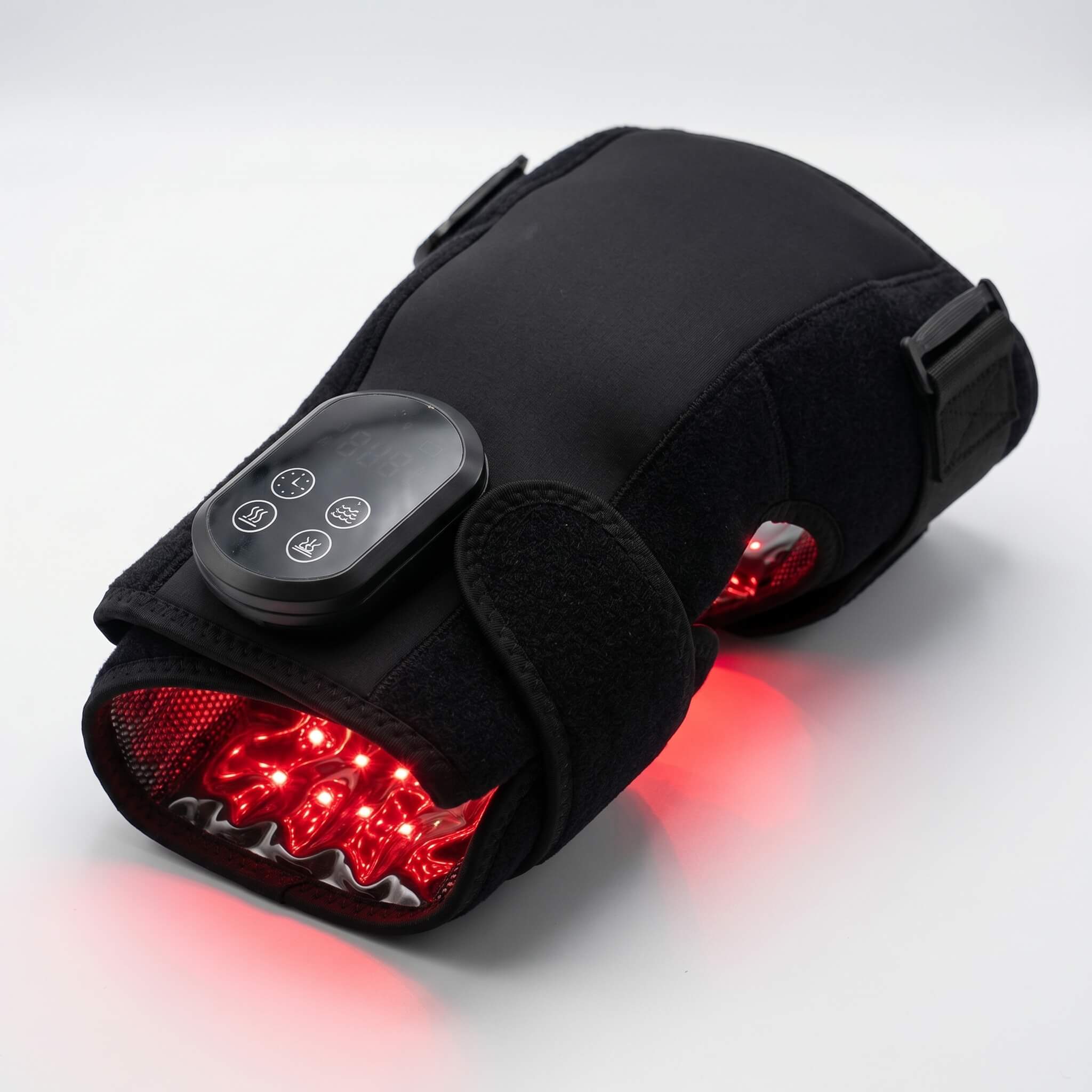

The Red Light Knee Wrap by Regenomedix delivers targeted red and near-infrared photobiomodulation combined with adjustable heat and full-surround vibration massage directly to the knee joint using 100 dual-mode medical-class LED diodes in a wireless 3D wearable design. FDA-cleared and engineered for all-day comfort, this device provides practitioners and patients with a clinically structured triple-therapy approach to joint support — combining two professional-grade wavelengths with thermal and mechanical stimulation in a single wearable platform.
Understanding the Wavelengths
The Red Light Knee Wrap utilizes two clinically validated wavelengths — red and near-infrared — each targeting a specific tissue depth and biological mechanism within the joint environment.
- Red Light — 630 to 660nm Penetrates the superficial tissue layers surrounding the joint — stimulating fibroblast activity, collagen synthesis, and local circulation. Supports tissue repair, inflammation modulation, and cellular regeneration within the joint capsule and surrounding connective tissue.
- Near-Infrared — 850nm Penetrates deeper into joint structures — reaching synovial tissue, cartilage, tendons, ligaments, and deeper musculoskeletal layers. Supports deeper circulation enhancement, inflammatory modulation, and cellular repair within the joint and surrounding musculature.
The combination of 660nm and 850nm wavelengths delivers layered photobiomodulation across both superficial and deep joint tissue — providing broader physiologic support than single-wavelength protocols.
Triple Therapy — Red Light, Heat & Vibration
What distinguishes the Red Light Knee Wrap from standard photobiomodulation devices is its integration of three simultaneous therapeutic modalities:
Photobiomodulation Red and near-infrared LED therapy targeting cellular repair, circulation, and inflammation modulation at the tissue level.
Adjustable Heat Therapy Thermal delivery adjustable between 40 and 45°C supports vasodilation, muscle relaxation, and improved local circulation — complementing the photobiomodulation mechanism and enhancing overall tissue response.
Full-Surround Vibration Massage Four levels of vibration massage intensity provide mechanical stimulation across the full joint surface — supporting lymphatic drainage, muscle relaxation, and circulatory enhancement around the knee.
The integration of all three modalities within a single wearable device enables comprehensive joint support protocols that address multiple biological targets simultaneously.
Technical Specifications
Specification | Detail |
SKU | LED-SR-KNEE036 |
FDA Status | FDA-Cleared |
Therapy Type | Triple Therapy — Red, NIR + Heat + Vibration Massage |
Design | Wireless 3D — All-Day Wearable Comfort |
Safety | Medical-Grade — All-Day Wearable Relief |
LED Diodes | 100 Dual-Mode Medical-Class Professional-Grade |
Wavelengths | Red 630–660nm, Near-IR 850nm |
Modes | Red + NIR, Red, Heating, Vibration Massage |
Light Power | Up to 40 mW/cm² |
Heat Range | Adjustable 40 to 45°C |
Vibration | 4 Levels of Massage Intensity |
Battery | 5000mAh — 90 minutes operating time |
Charge Time | 4.5 hours to fully charge |
Recommended Treatment | 15 to 30 minutes per session, daily as needed |
Treatment Coverage | Knee, Shoulder, Elbow, or other joints |
Dual-Mode LED Diode Configuration

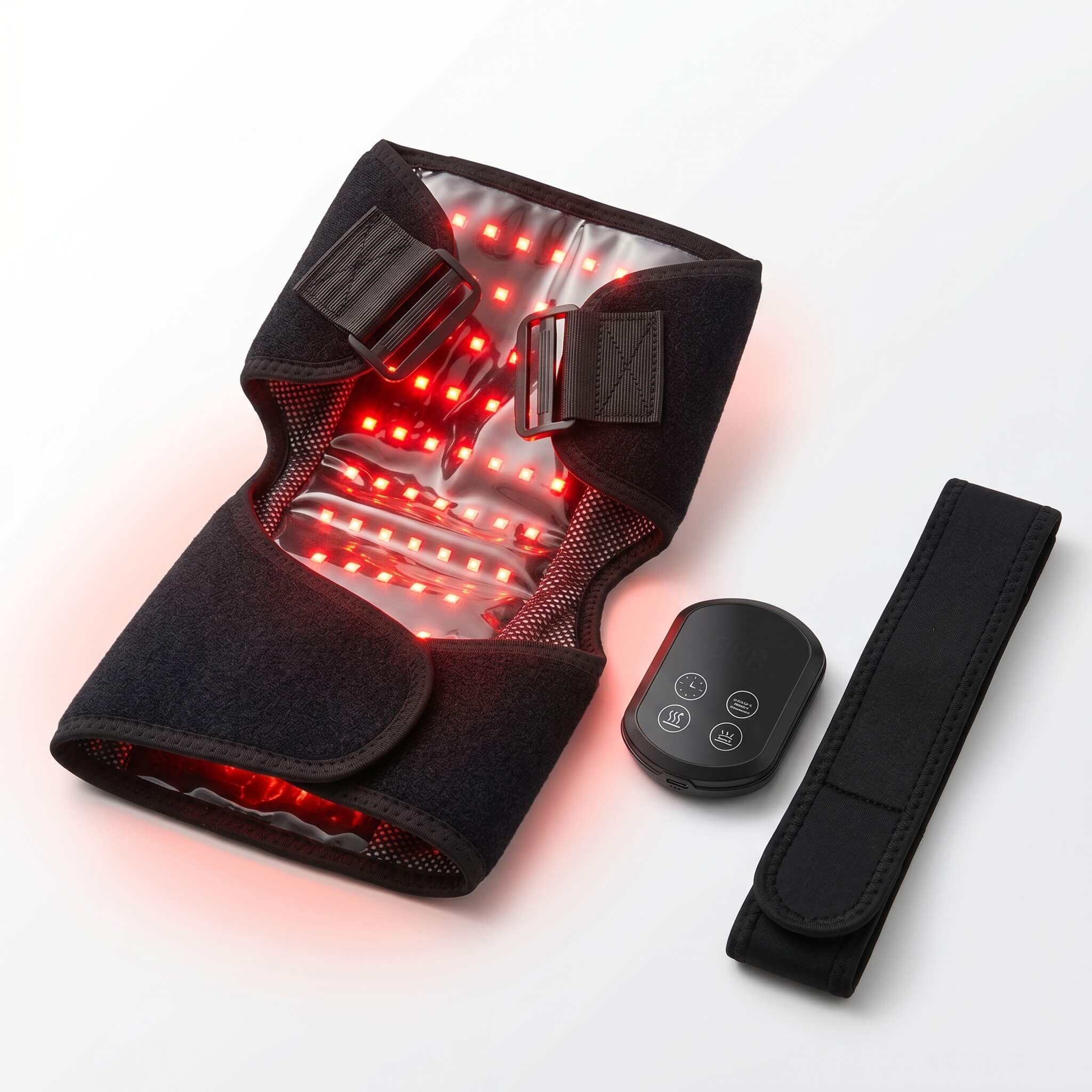

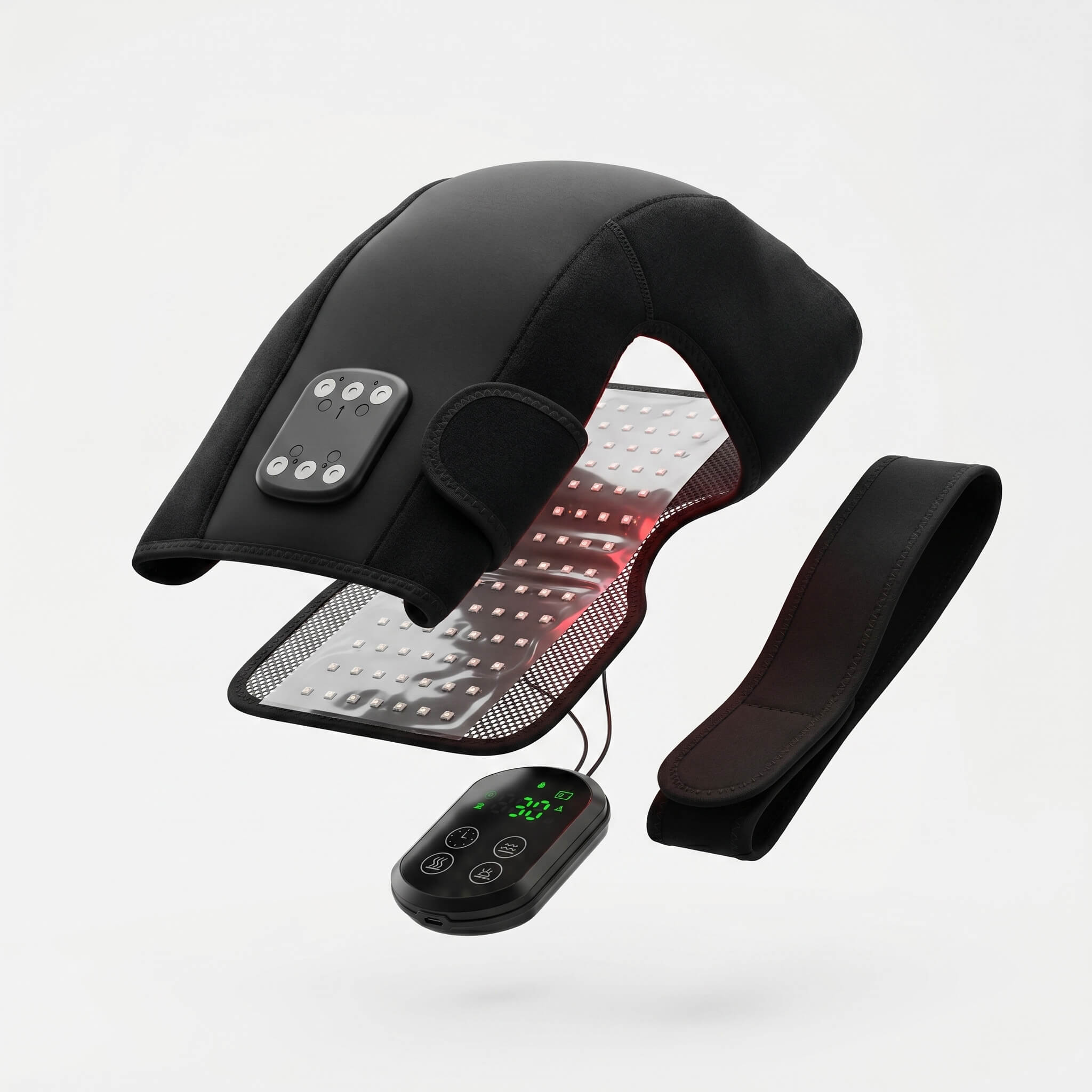

The device incorporates 100 dual-mode medical-class professional-grade LED diodes distributed across the full wrap surface in a 3D configuration. The dual-mode architecture enables simultaneous 660nm and 850nm wavelength delivery — ensuring both superficial and deep tissue layers receive consistent photon stimulation throughout the session.
The full-surround 3D design ensures uniform LED coverage across the entire joint surface — minimizing coverage gaps and supporting consistent energy delivery to all targeted tissue areas.
Irradiance and Energy Delivery
The Red Light Knee Wrap delivers up to 40 mW/cm² of irradiance optimized for joint-targeted delivery. This irradiance level is calibrated to balance effective photon penetration into joint structures with safe and comfortable extended wear during sessions of 15 to 30 minutes.
Heat and Vibration Integration
Thermal Therapy The adjustable heat function operates between 40 and 45°C — a range clinically associated with vasodilation, increased local blood flow, and muscle relaxation. Thermal delivery complements photobiomodulation by further supporting circulatory enhancement and tissue preparation for cellular repair processes.
Vibration Massage Four levels of vibration intensity provide customizable mechanical stimulation across the joint surface. Vibration therapy supports lymphatic drainage, reduces muscle tension, and enhances local circulation — working synergistically with both photobiomodulation and thermal therapy for comprehensive joint support.
Wireless 3D Design and Wearability
The wireless 3D design conforms to the natural contours of the knee joint — maintaining consistent device-to-tissue contact across the full treatment area during movement and extended wear. The ultra-lightweight construction supports all-day wearability without compromising treatment efficacy or patient comfort.
Wireless operation eliminates power cable constraints — enabling flexible use across clinical and structured at-home environments.
Battery and Operation
The integrated 5000mAh rechargeable battery supports 90 minutes of continuous operation per charge — accommodating extended daily sessions within structured joint support protocols. Full charge is achieved in approximately 4.5 hours.
The high-capacity battery is designed to support consistent daily use without frequent recharging interruptions.
Suggested Usage
The Red Light Knee Wrap is designed for joint-focused photobiomodulation protocols. Manufacturer guidance recommends 15 to 30 minutes per session, daily as needed. The device is also suitable for application to the shoulder, elbow, and other joints beyond the knee.
Mode selection and therapy combination should be tailored to the specific clinical indication and patient presentation. Heat and vibration settings should be adjusted according to patient comfort and tolerance.
Consultation with a qualified professional is recommended before integrating the device into therapeutic protocols.
Comfort and Safety
The 3D wearable design provides a secure and comfortable fit during extended treatment sessions. Medical-grade construction ensures safe all-day wearability across a broad range of patient presentations.
Safety Guidelines:
- Do not look directly into LED light
- Not suitable for children or pregnant individuals
- Avoid use if taking light-sensitive medications
- Do not exceed recommended heat settings
- Do not immerse in water
- Store in cool, dry conditions
- One-year warranty included
Comprehensive Joint Support Through Triple Therapy Photobiomodulation
Deliver structured dual-wavelength LED therapy combined with adjustable heat and full-surround vibration massage to the knee and other joints with a wireless, FDA-cleared wearable device engineered for consistent clinical application.
