Dual-Wavelength Photobiomodulation for Structured Scalp and Follicular Support
The Red Light Hair Cap by Regenomedix delivers targeted red and near-infrared photobiomodulation directly to the entire scalp using 408 tri-mode medical-class LED diodes in a wireless 3D wearable design. FDA-cleared and engineered for all-day comfort, this device provides practitioners and patients with a clinically structured approach to scalp-focused light therapy — combining two professionally validated wavelengths in a portable, easy-to-use wearable platform.
Understanding the Wavelengths

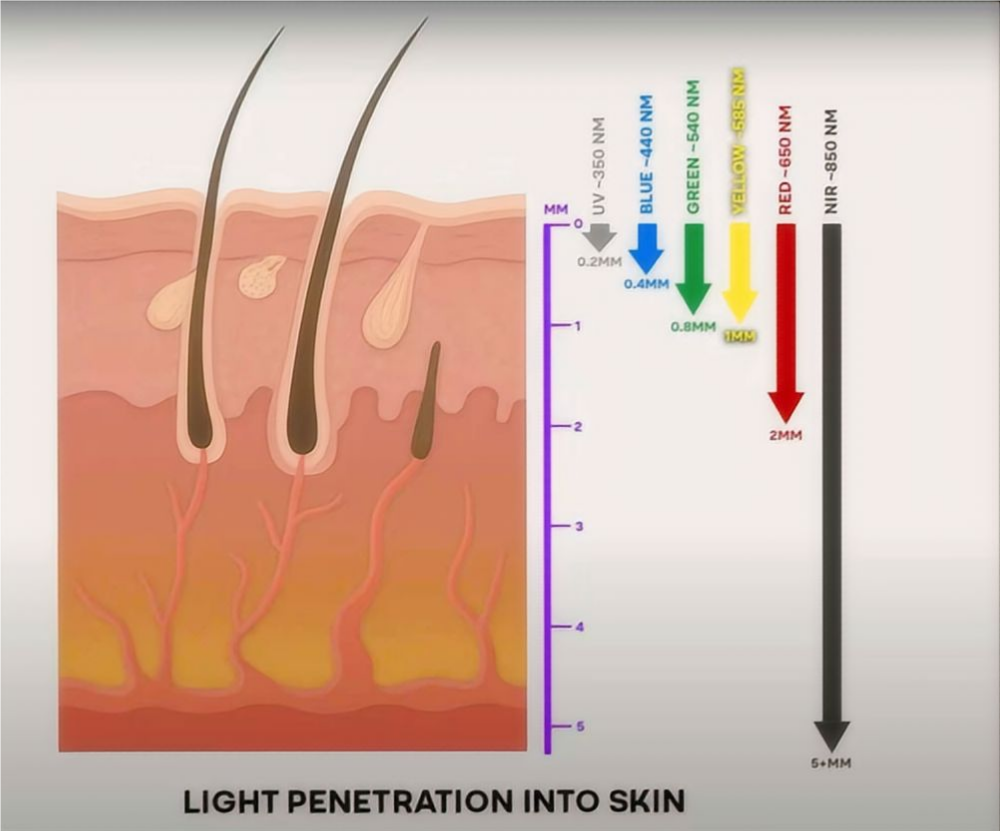

The Red Light Hair Cap utilizes two clinically validated wavelengths — red and near-infrared — each targeting a specific tissue depth and biological mechanism within the scalp environment.
- Red Light — 660nm Penetrates superficial scalp tissue layers — interacting directly with follicular cells, fibroblasts, and superficial scalp vasculature. Supports follicular metabolism, cellular energy production, and local microcirculation within the scalp. The 660nm wavelength is widely studied in photobiomodulation research for its role in supporting the anagen phase of the hair growth cycle.
- Near-Infrared — 850nm Penetrates deeper into scalp structures — reaching subdermal tissue layers, deeper vascular networks, and the connective tissue environment surrounding follicular structures. Supports deeper scalp circulation, inflammatory modulation, and optimization of the follicular microenvironment.
The combination of 660nm and 850nm wavelengths delivers layered photobiomodulation across both superficial follicular tissue and deeper scalp structures — providing broader physiologic support than single-wavelength protocols.
Photobiomodulation and Scalp Biology
Red and near-infrared light are part of the electromagnetic spectrum. Unlike ultraviolet light these wavelengths are not ionizing and do not damage tissue. Instead they are absorbed by mitochondrial chromophores — particularly cytochrome c oxidase within follicular and scalp cells.
When these photons are absorbed they contribute to mitochondrial activity and ATP production. ATP — adenosine triphosphate — is the primary energy currency of the cell. By supporting cellular energy processes within follicular tissue photobiomodulation may assist in optimizing follicular function and supporting local scalp microcirculation.
Hair thinning often develops due to follicular miniaturization, reduced microcirculation, inflammatory signaling, and metabolic stress within the scalp environment. As follicles become metabolically compromised they produce progressively thinner and shorter hair shafts. Red light therapy supports scalp health by improving follicular metabolism and local circulation — providing the cellular energy and vascular environment necessary for structured hair support protocols.
Technical Specifications
Specification | Detail |
SKU | LED-SA-CAP01 |
FDA Status | FDA-Cleared |
Therapy Type | Dual Therapy — Red and Near-Infrared |
Design | Wireless 3D — All-Day Wearable Comfort |
Safety | Medical-Grade — All-Day Wearable Relief |
LED Diodes | 408 Tri-Mode Medical-Class Professional-Grade |
Wavelengths | Red 660nm, Near-IR 850nm |
Modes | Red + NIR, 3 selectable power levels, 3 optional pulsating frequencies |
Light Power | Up to 45 mW/cm² |
Battery | 2500mAh — 45 minutes operating time |
Charge Time | 1 hour to fully charge |
Recommended Treatment | 20 minutes per session, daily as needed, up to 3 times per day |
Treatment Coverage | Entire Scalp |
Tri-Mode LED Diode Architecture

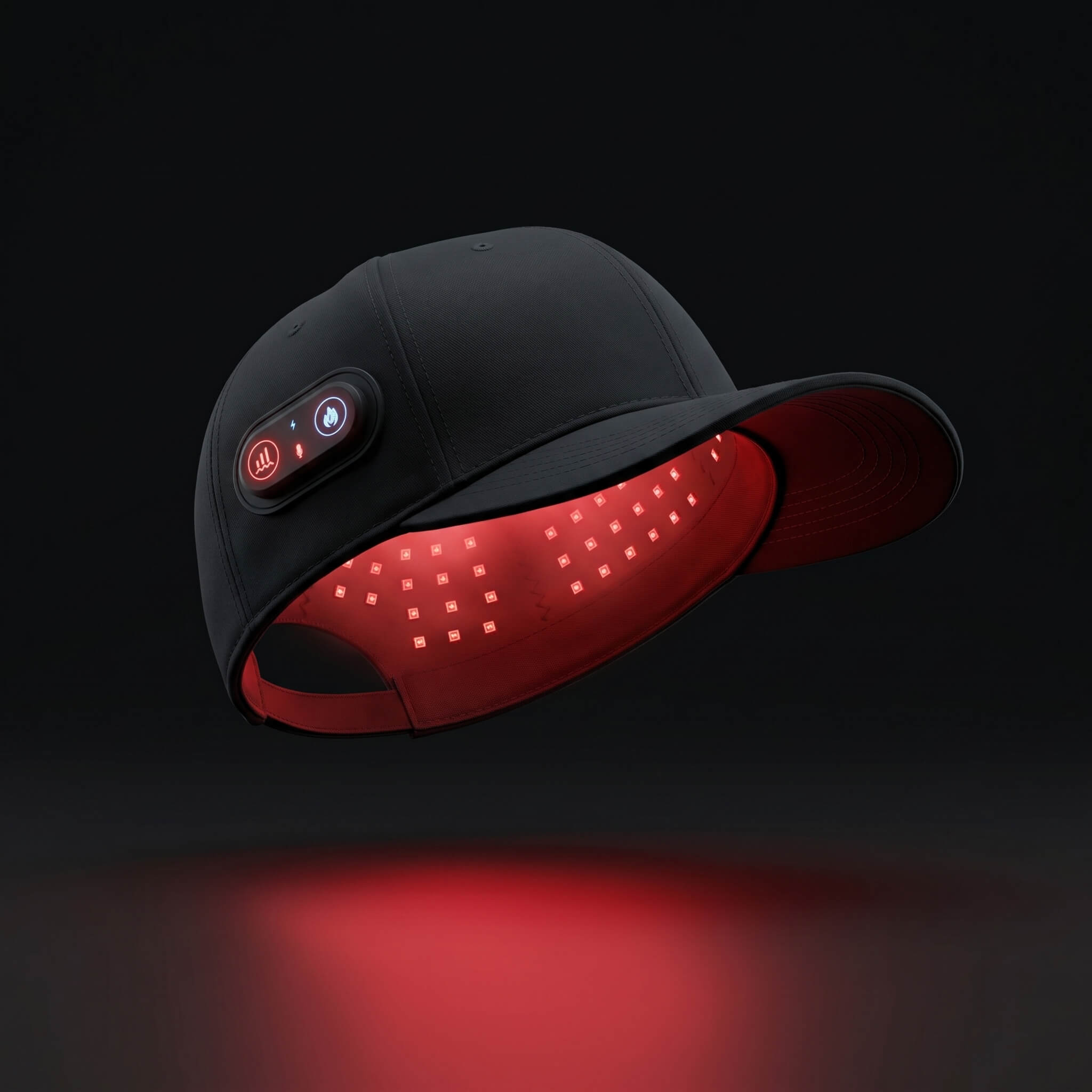

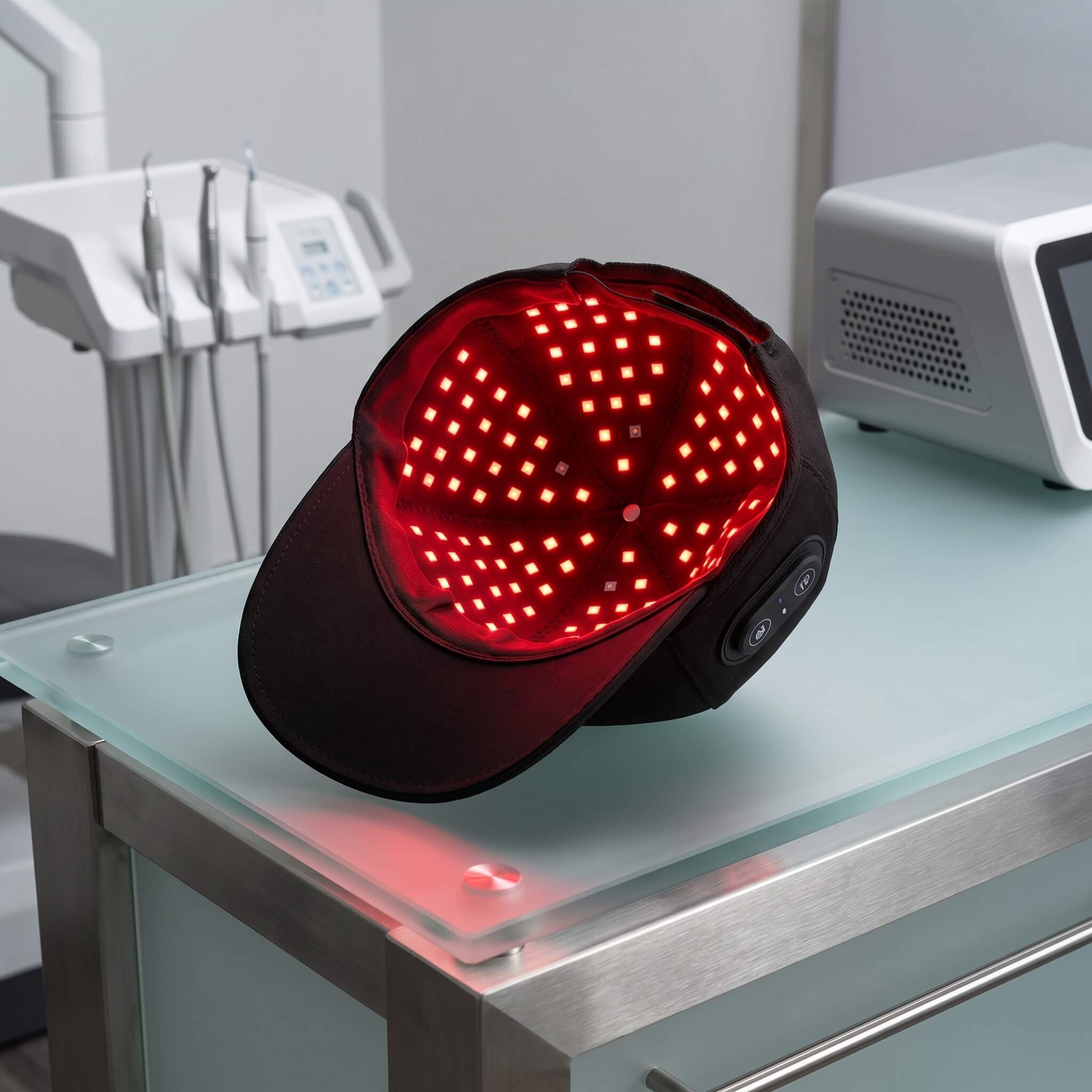

The Red Light Hair Cap incorporates 408 tri-mode medical-class professional-grade LED diodes distributed across the full cap structure. The tri-mode configuration supports simultaneous delivery of both 660nm and 850nm wavelengths — ensuring superficial follicular tissue and deeper scalp structures receive consistent photon stimulation throughout each session.
This high-density diode configuration supports uniform photon distribution across the entire scalp — minimizing coverage gaps and ensuring consistent energy delivery to all follicular zones. Rather than relying on sparse diode placement the system is structured to enhance coverage consistency which is critical for organized scalp photobiomodulation programs.
Irradiance and Energy Delivery
The Red Light Hair Cap delivers up to 45 mW/cm² of irradiance — the intensity of light energy delivered per square centimeter of scalp tissue. This irradiance level is optimized for scalp-targeted delivery balancing effective photon penetration into follicular and subdermal structures with user comfort during extended daily sessions.
Maintaining consistent irradiance across the entire scalp ensures that energy reaches all target follicular zones at a stable and controlled level — supporting reproducible outcomes within structured scalp protocols.
Pulsating Frequency Modes
The device offers three optional pulsating frequency settings in addition to continuous delivery modes. Pulsed delivery enables peak light intensity with reduced heat accumulation — allowing mitochondria brief recovery periods while sustaining ATP upregulation within follicular tissue.
The 10Hz pulsating frequency is commonly referenced in photobiomodulation literature for deeper tissue applications and recovery protocols. The availability of multiple pulsating frequencies allows practitioners to customize delivery parameters to specific scalp conditions and patient presentations.
Session Modes and Power Levels
Three selectable power levels allow practitioners and users to tailor irradiance intensity according to comfort preference and structured protocol requirements. The combination of power level selection and pulsating frequency options provides flexibility in designing individualized scalp photobiomodulation protocols.
The 20-minute recommended session duration supports consistent daily application within structured hair support programs.
Battery and Portability
The integrated 2500mAh rechargeable battery enables cordless scalp coverage — supporting both professional clinical environments and structured at-home programs. Full charge is achieved in approximately 1 hour — minimizing downtime between sessions and supporting consistent daily use within treatment protocols.
The wireless design eliminates power cable constraints enabling flexible positioning and comfortable extended wear during sessions.
Suggested Usage
The Red Light Hair Cap is designed for scalp-focused photobiomodulation protocols. Manufacturer guidance suggests once-daily use for mild programs, twice daily for moderate protocols, and up to three times daily for intensive routines — each session lasting 20 minutes.
Protocol intensity and frequency should be tailored to the specific clinical indication and patient presentation. The device is designed specifically for full scalp coverage and follicular support applications.
Consultation with a qualified professional is recommended before integrating light therapy into therapeutic plans.
Comfort and Safety
The wearable 3D design provides a lightweight flexible fit while maintaining consistent scalp contact throughout sessions. The adjustable design supports comfortable extended wear across a range of head sizes.
Safety Guidelines:
- Do not look directly into LED light
- Not suitable for children or pregnant individuals
- Avoid use if taking light-sensitive medications
- Do not immerse in water
- Clean fabric portion gently without soaking
- Store in cool, dry conditions
- One-year warranty included
The device is designed with 0 EMF output — an additional safety consideration for extended wearable use.
Structured Scalp Photobiomodulation with High-Density LED Coverage
Deliver targeted 660nm and 850nm photobiomodulation across the entire scalp with a precision-engineered 408-diode FDA-cleared wearable device designed for consistent daily application within structured scalp support protocols.
