Musculoskeletal (MSK) injections are a cornerstone of non-surgical management for various conditions, including joint arthritis, tendinopathies, bursitis, and enthesopathies. Despite their routine application, these injections’ accuracy and therapeutic efficacy depend highly on proper needle placement, especially in anatomically complex or deeply situated structures. In this context, diagnostic ultrasound has emerged as a valuable adjunct for clinicians, enhancing the precision and safety of MSK procedures. This article explores the clinical utility, evidence base, and practical implications of incorporating ultrasound guidance into MSK injection protocols.
Limitations of Landmark-Guided Injections
Historically, many MSK injections have been performed using anatomical landmarks and palpation to estimate needle placement. While this approach can be adequate in large, superficial joints, it often falls short in areas where anatomy is complex or variable. Inaccurate placement may lead to suboptimal delivery of therapeutic agents, reduced efficacy, patient dissatisfaction, and the need for repeat interventions. These limitations are particularly pronounced in the shoulder, hip, wrist, and deep spinal joints, where soft tissue overlap and proximity to critical structures complicate landmark-guided access.
Diagnostic Ultrasound: A Real-Time Solution
Diagnostic ultrasound, also known as musculoskeletal diagnostic ultrasound imaging (MSK-DUSI), provides real-time, dynamic visualization of soft tissue structures, joint spaces, tendons, and vasculature. Its portability, non-ionizing nature, and cost-effectiveness have made it increasingly popular in outpatient settings, including pain management, sports medicine, orthopedics, physical medicine, and rehabilitation. For injections, ultrasound allows clinicians to visualize needle trajectory, avoid neurovascular structures, and confirm accurate intra-articular or peritendinous deposition of injectate.
Multiple imaging modes, including B-mode, color Doppler, and power Doppler, further enhance anatomical delineation and vascular identification. These capabilities are particularly valuable in patients with anatomical variations, high body mass index, or scar tissue from prior procedures.
Evidence Supporting Ultrasound-Guided Injections
Numerous studies across various joint regions support ultrasound guidance’s superior accuracy and clinical outcomes. Below is a summary of findings from high-quality systematic reviews, meta-analyses, and randomized controlled trials.
| Anatomical Site | Ultrasound-Guided Accuracy | Landmark-Guided Accuracy | Clinical Outcome Improvements |
| Knee Joint (Intra-articular) | 95.4% | 82.0% | Improved pain scores and reduced repeat procedures |
| Shoulder (Subacromial Bursa) | 84–100% | 50–70% | Significant improvements in pain and function at 6–8 weeks |
| Hip Joint | 99–100% | ~72% | Superior accuracy and patient comfort |
| Elbow Joint | 91–100% | 37.5–100% | Consistent needle placement accuracy |
| Cervical Facet Joints | 92–98% | Not reliably reported | Enhanced safety and shorter procedure time |
| Foot and Ankle | ~100% | 58–85% | Better target localization in small joints |
For example, a 2023 literature review emphasized that ultrasound-guided subacromial corticosteroid injections consistently yield statistically significant improvements in pain and shoulder abduction at six weeks post-procedure compared to blind injections. Likewise, newer randomized controlled trials have confirmed that ultrasound-guided knee and hip injections offer greater accuracy and improved clinical outcomes, particularly in patients with complex joint anatomy or elevated BMI.
Recent comparative studies have validated ultrasound’s superior needle placement and reduced procedure time in foot, ankle, and spinal joint injections. These benefits translate into better treatment response and reduced complication risk without needing radiation-based imaging modalities.
Portable Ultrasound in Musculoskeletal Practice

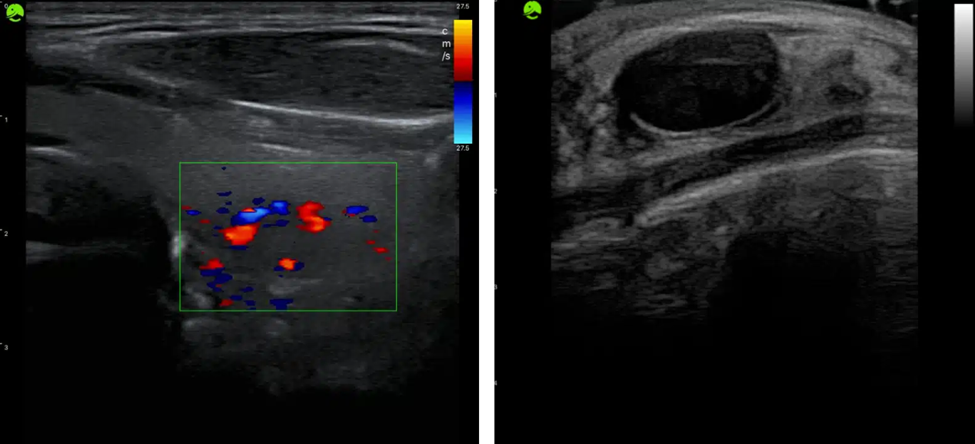

Recent advancements in ultrasound technology have introduced high-performance, portable ultrasound devices that offer the same imaging capabilities as larger consoles, dramatically increasing mobility and workflow efficiency. These handheld systems often integrate dual probes, AI-assisted imaging, and wireless connectivity, making them ideal for point-of-care diagnostics and interventions.
For musculoskeletal injections, portable ultrasound allows clinicians to perform image-guided procedures in diverse settings, including outpatient clinics, surgical centers, and mobile units. The compact design facilitates bedside injections without requiring dedicated imaging suites, which is particularly beneficial for high-volume practices and environments with limited space.
Features like enhanced needle visualization, automated measurements, and multiplatform compatibility (iOS, Android, Windows) support clinical decision-making and documentation without disrupting existing workflows. These portable systems enable rapid, accurate, patient-centered care in treating MSK conditions.
Safety, Efficiency, and Diagnostic Integration
Ultrasound increases procedural accuracy and improves safety by helping practitioners avoid neurovascular structures. Real-time imaging can prevent inadvertent injury to the genicular artery or vertebral vessels in complex areas such as the posterior lateral corner of the knee or the cervical spine.
Efficiency is also improved. Studies report shorter procedure times and fewer needle passes when using ultrasound guidance. One clinical trial reported an average injection time of 2.6 minutes with ultrasound versus 5 to 7 minutes with palpation techniques. This contributes to reduced patient discomfort and better clinic workflow.
Diagnostic ultrasound can also be used concurrently to assess surrounding pathology, such as effusions, synovitis, or tendon degeneration, offering a more comprehensive evaluation before intervention. In some cases, ultrasound findings may alter the choice of therapy altogether.
Therapeutic Injections Enhanced by Ultrasound
Ultrasound guidance is now widely employed in the administration of various MSK injections, including:
- Corticosteroids: for bursitis, arthritis, and tendinopathies.
- Platelet-Rich Plasma (PRP): for tendon and joint regeneration.
- Hyaluronic Acid: in knee osteoarthritis.
- Botulinum Toxin: for spasticity management in neurologic conditions.
- Prolotherapy and Biologics: in regenerative protocols.
The accuracy of their delivery directly influences the efficacy of these therapies. For PRP, Intratendinous and intra-articular placement is critical to optimize regenerative signaling. Ultrasound ensures the bioactive material reaches the targeted pathology.
Practical Considerations for Clinicians
While ultrasound guidance is associated with a learning curve, most clinicians become proficient with targeted training and practice. Multiple societies offer certification pathways and hands-on courses, including the American Institute of Ultrasound in Medicine (AIUM) and the European Society of Musculoskeletal Radiology (ESSR).
Modern handheld ultrasound devices have minimized technological and logistical barriers. High-resolution, portable systems now offer color Doppler, needle enhancement features, and artificial intelligence-driven measurement tools. These innovations enable broader adoption in both traditional and mobile practice settings.
DICOM compatibility also streamlines integration with existing health information systems, ensuring that imaging and procedural documentation are captured within the patient’s medical record. This can be valuable quality assurance, billing, and legal protection evidence.
Limitations and Future Directions
Not all studies show statistically significant clinical differences between ultrasound and blind techniques, especially in large or superficial joints such as the glenohumeral space. In these cases, accuracy improvements may not translate into better outcomes due to already high success rates of landmark methods. Additionally, ultrasound requires user expertise, and inadequate training can reduce its benefits.
Further high-powered, multi-center randomized trials are needed to evaluate long-term outcomes of ultrasound-guided biologic therapies such as PRP, prolotherapy, and exosome injections. Cost-effectiveness studies will also clarify whether improved accuracy reduces healthcare expenditures over time.
Conclusion
Diagnostic ultrasound has transformed the approach to musculoskeletal injections, enabling greater accuracy, efficiency, and safety across a wide range of clinical applications. From knees to shoulders, hips to cervical joints, ultrasound-guided procedures consistently outperform landmark-based precision and procedural confidence. As technology advances, integrating portable, AI-enhanced ultrasound into everyday MSK practice is feasible and clinically warranted.
Ultrasound guidance is essential for clinicians striving to optimize outcomes, protect patients, and streamline workflows.
References
- Saha P, Smith M, Hasan K. (2023). Accuracy of intra‑articular injections: blind vs. image‑guided techniques—a literature review. J Funct Morphol Kinesiol, 8(3):93. https://doi.org/10.3390/jfmk8030093
- Ghandour S, Taseh A, Sussman W, et al. (2024). Case report: Portable handheld ultrasound facilitates intra-articular injections in articular foot pathologies. Front Pain Res, 5:1254216. https://doi.org/10.3389/fpain.2024.1254216
- Johannsen F, et al. (2022). Ultrasonography-guided injection vs placebo added to exercise for tendinopathy: a randomized clinical trial. JAMA Netw Open, 5(7):e2219661. https://doi.org/10.1001/jamanetworkopen.2022.19661
- Bildik Kaya Z, et al. (2023). Double-blinded RCT comparing platelet-rich plasma vs. autologous blood for plantar fasciitis. Int Orthop, 47(5):646–657. https://doi.org/10.1007/s00264-023-05714-5
- Helgeson MD, et al. (2023). What’s New in Spine Surgery. J Bone Joint Surg Am, 105(9). https://doi.org/10.2106/jbjs.23.00125
- Lippi L, et al. (2023). Multidisciplinary rehabilitation after hyaluronic acid injections for older people with OA. Medicina, 59(11):2047. https://doi.org/10.3390/medicina59112047
